STRUCTURE GUARD
Satisfied test of Compressive/Flexural Strength according to ASTM C 109
- View in video
Product Rating

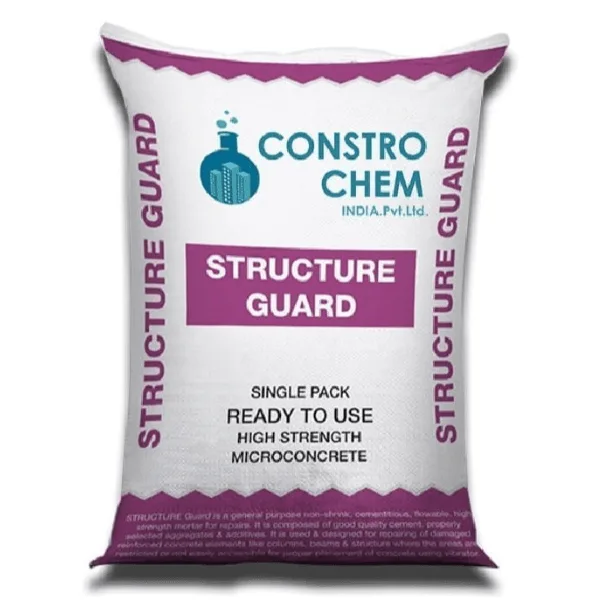

Micro Concrete
High-Strength Micro-Concrete for Structural Repairs
A versatile, flowable, high-strength, non-shrink cementitious micro-concrete for repairs is called STRUCTURE GUARD. It is made up of corrosion-resistant additives, carefully chosen aggregates, and high-quality cement. It is used and made to repair damaged reinforced concrete components, such as beams, columns, and structures, in places that are too small or difficult to reach for a vibrator to properly put concrete. It is suitable for thicknesses up to 40 mm to 100 mm and flows freely.
Additional Information:
| Property | Value |
|---|---|
| Appearance | Grey cementitious powder |
| Chloride Content | Nil |
| Depth of Carbonation | Nil |
| Packaging | 25 kg in moisture-resistant bags |
| Shelf Life | 1 year in unopened bags in dry condition |
| Mix Proportion (Water in Micro Concrete Cement) | 3.75-4 liters per 25 kg bag |
| Test Parameter | Test Method | Test Result | Measurement Unit |
|---|---|---|---|
| Compressive Strength (1 day) | ASTM C 109 | 25 N/mm² | N/mm² |
| Compressive Strength (7 days) | ASTM C 109 | 40 N/mm² | N/mm² |
| Compressive Strength (28 days) | ASTM C 109 | 60 N/mm² | N/mm² |
| Flexural Strength (7 days) | ASTM C 293 | 8.2 N/mm² | N/mm² |
| Flexural Strength (28 days) | ASTM C 293 | 9.2 N/mm² | N/mm² |
| Split Tensile Strength | ASTM C 496 | 3.0 N/mm² | N/mm² |
- Pumpable & Flowable: Easily applied in restricted areas without vibration.
- High Compressive Strength: Achieves 60 N/mm² in 28 days for strong repairs.
- Shrinkage Compensation: Prevents cracks and settlement during curing.
- Corrosion & Moisture Resistance: Protects reinforcement from environmental damage.
- Rapid Strength Gain: Allows for quick reinstatement and removal of shuttering.
- No Chlorides: Ensures reinforcement durability without corrosion risks.

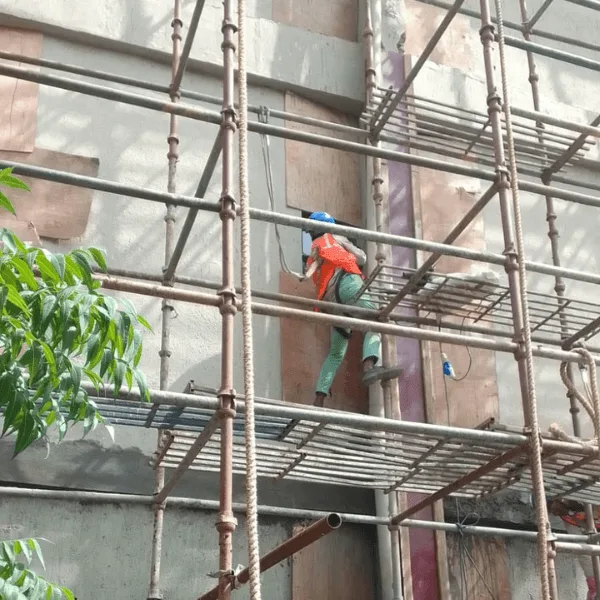

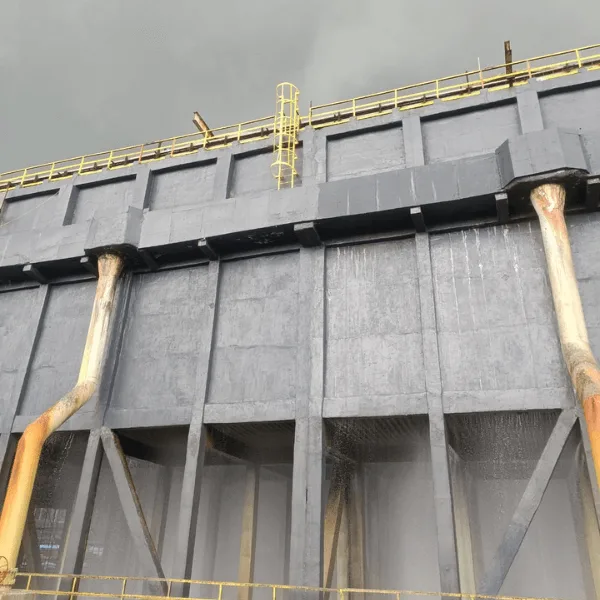

- Repair of damaged reinforced concrete elements like Beams, Columns, Wall etc.
- Where access is restricted and compaction is not possible.

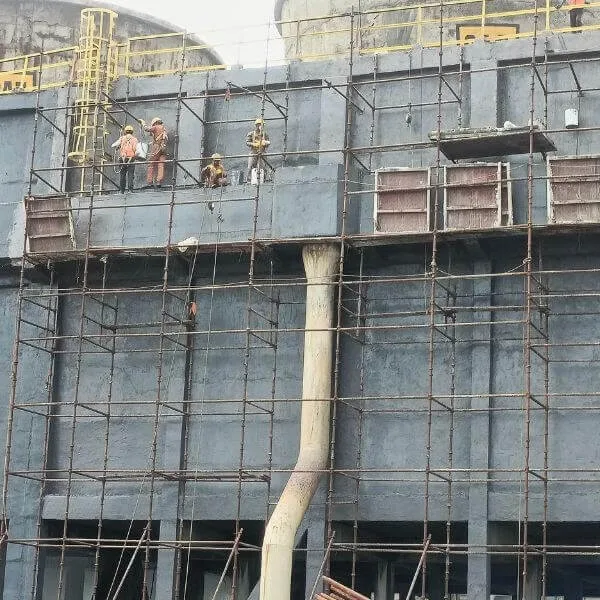

- For jacketing of RCC columns to increase load taking capacity (strengthening of vertical members).
Why Choose a STRUCTURE GUARD?
- Superior structural repair solution with high durability and strength.
- Ideal for inaccessible areas, ensuring long-lasting and maintenance-free concrete restoration.
Want to know more? Connect on WhatsApp or Request a Free Consultation!
Frequently Asked Questions (FAQs)
What is STRUCTURE GUARD used for?
STRUCTURE GUARD is a high-strength micro-concrete used for repairing reinforced concrete elements such as columns, beams, and walls, especially in areas where compaction is not possible.
How does STRUCTURE GUARD enhance structural durability?
It offers shrinkage compensation, corrosion resistance, and moisture protection, ensuring long-lasting repairs and increased load-bearing capacity.
Is STRUCTURE GUARD suitable for thick applications?
Yes, it can be applied in thicknesses ranging from 40 mm to 100 mm in a single application, making it ideal for jacketing and strengthening RCC columns.
What are the compressive strength properties of STRUCTURE GUARD?
It develops a compressive strength of 25 N/mm² in 1 day, 40 N/mm² in 7 days, and 60 N/mm² in 28 days, providing rapid and durable reinforcement.
How should STRUCTURE GUARD be stored?
Store in moisture-resistant bags under dry conditions. It has a shelf life of 12 months when unopened and properly stored.
